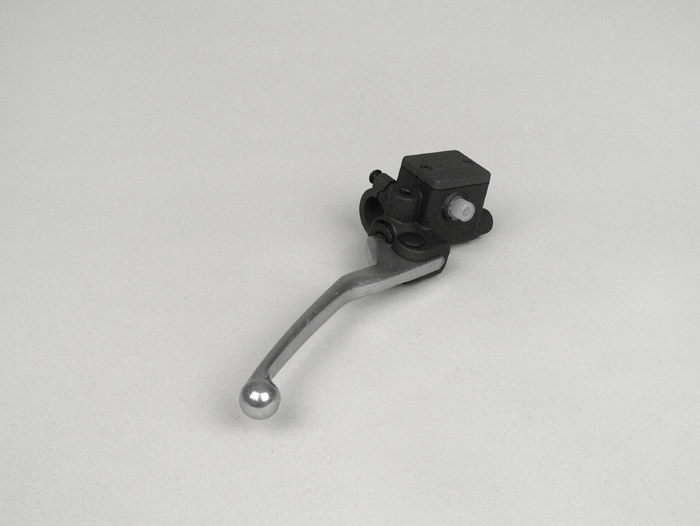

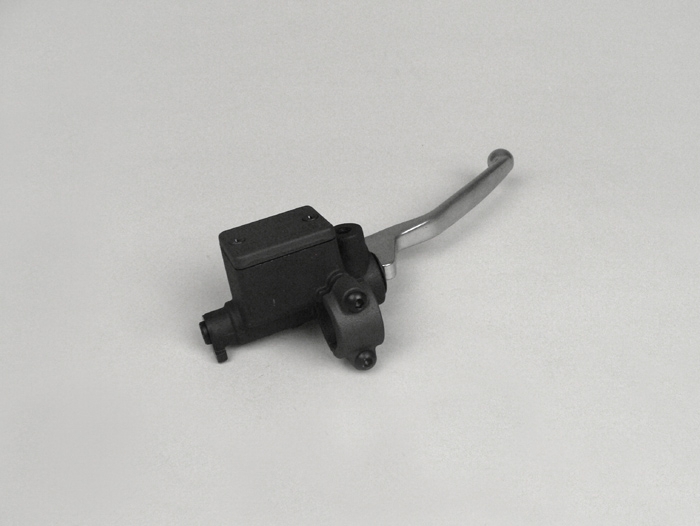

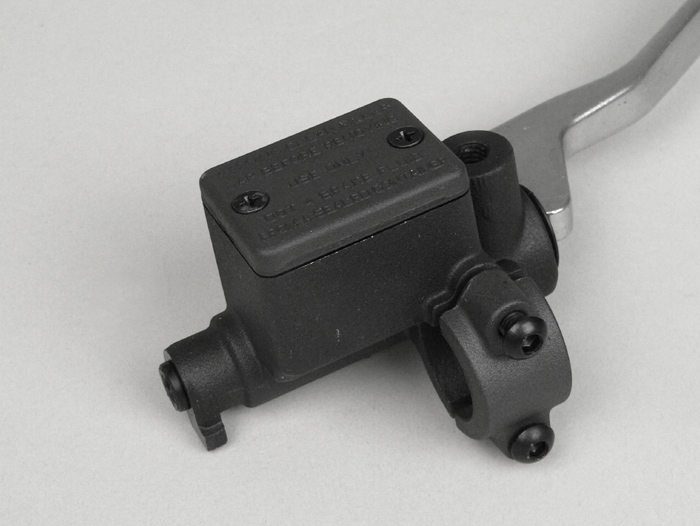

Original PIAGGIO/GILERA spare part in the usual good OEM quality!
Here is an overview of the force applied to the brake piston when combining different calipers and pump combinations.
In general, if the slave pistons are enlarged while the master pistons remain the same, there is always an increase in the braking force, although the lever travel is longer.
Conversely, if a brake pump with a larger piston but the same brake calliper is installed, a reduction in the force applied to the brake pistons is to be assumed, although the lever travel is smaller. Thus the brake becomes more direct, but requires more lever force for the same brake performance.
|
driving piston (brake caliper) |
||||
|
25mm |
28mm |
30mm |
32mm |
|
|
dispenser piston |
||||
|
10mm |
375 N |
p>470 N |
540 N |
614 N |
|
11mm |
310N |
389 N |
446 N |
p>508 N |
|
12mm |
260 N |
327 N |
375 N |
427 N |
|
13mm |
p>222 N |
278 N |
320 N |
364 N |
|
14mm |
191 N |
240 N |
p>276 N |
313 N |
|
15mm |
167 N |
209 N |
240 N |
273 N |
|
16mm |
146 N |
184 N |
211 N |
240 N |
|
17mm |
130 N |
163 N |
187 N |
213 N |
AI-translation>/em>/sub>
