Engine casing incl. crankshaft (stroke=57mm) -PINASCO Super Slave (reed intake)- 4 studs (suitable for cylinder type PX125-150) – Vespa Wideframe, faro basso (lamp down), Vespa 1953-1959, VM, VN, ACMA, VB1T, VGL1T, VL1T, GS150 speciale

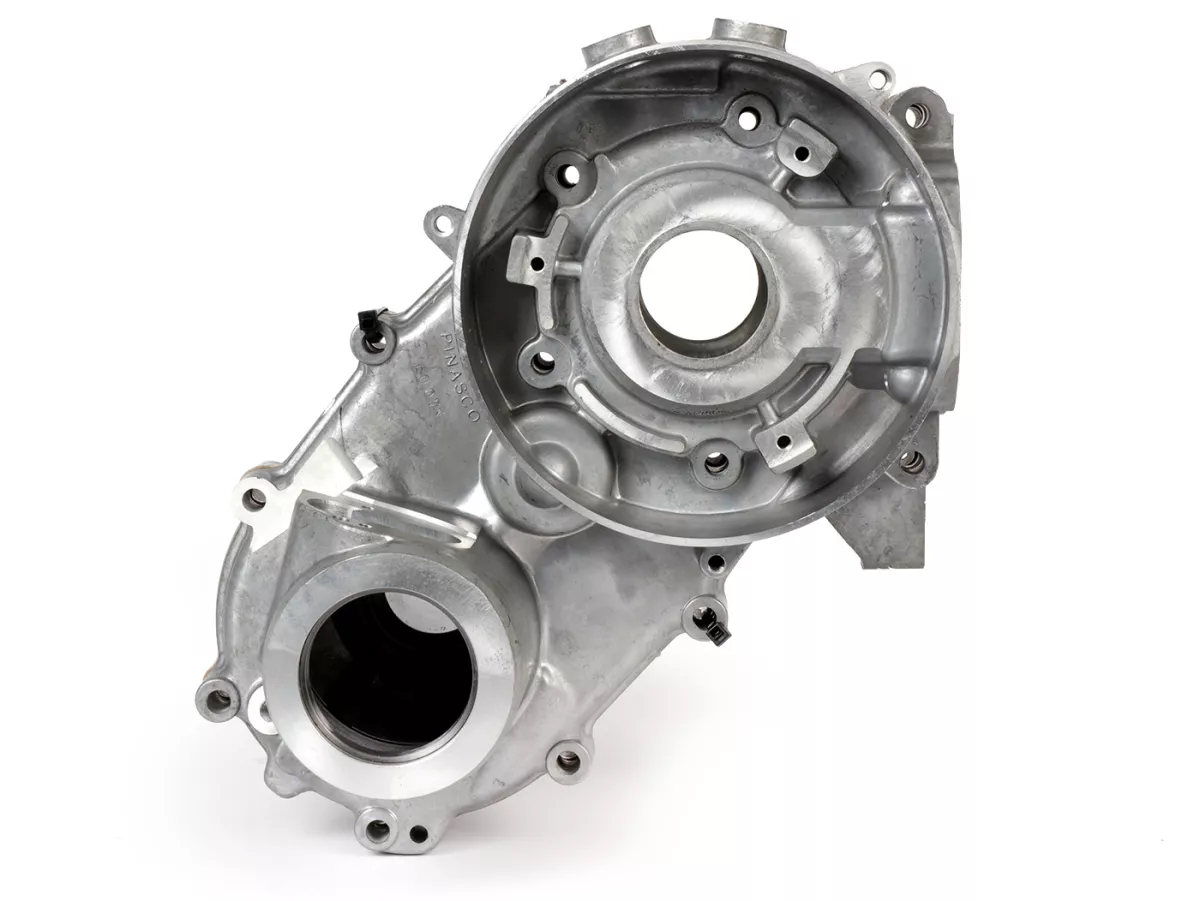

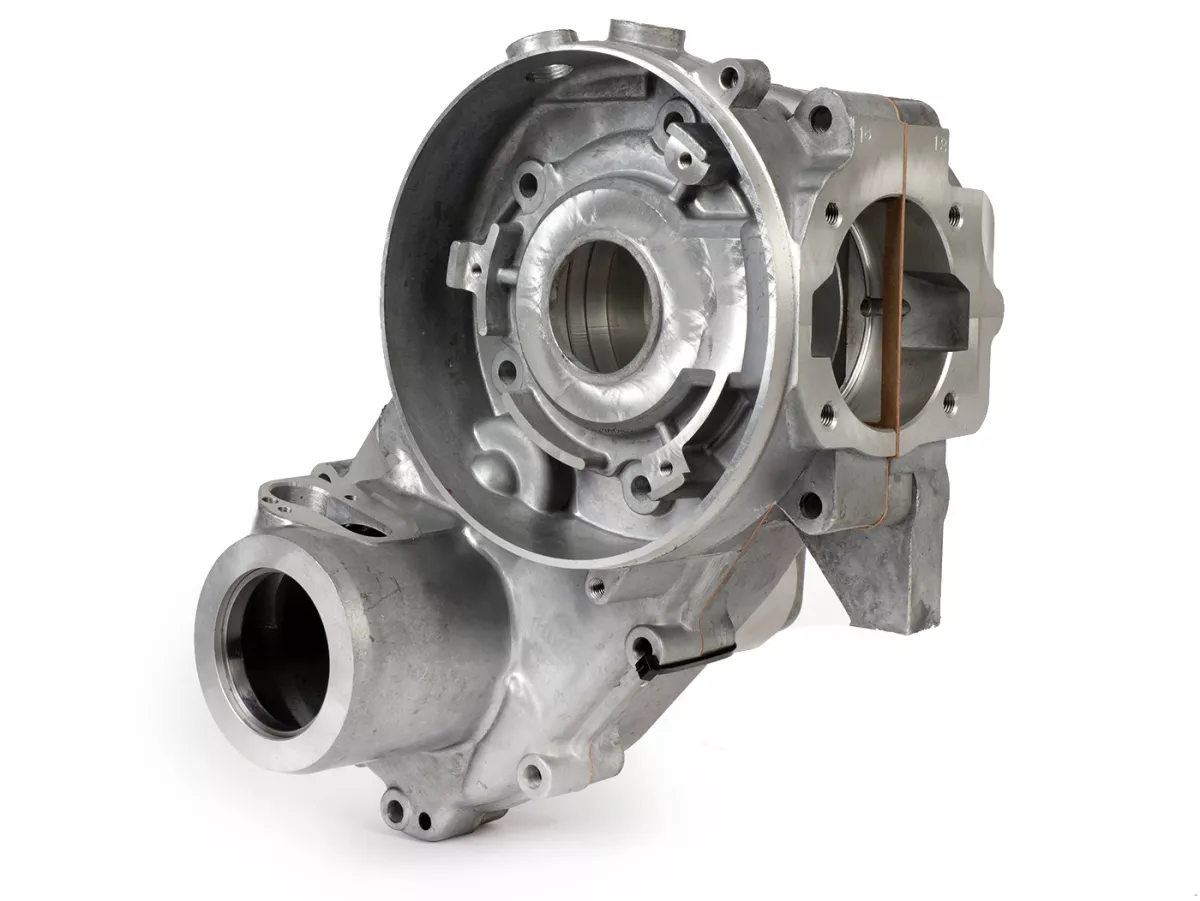

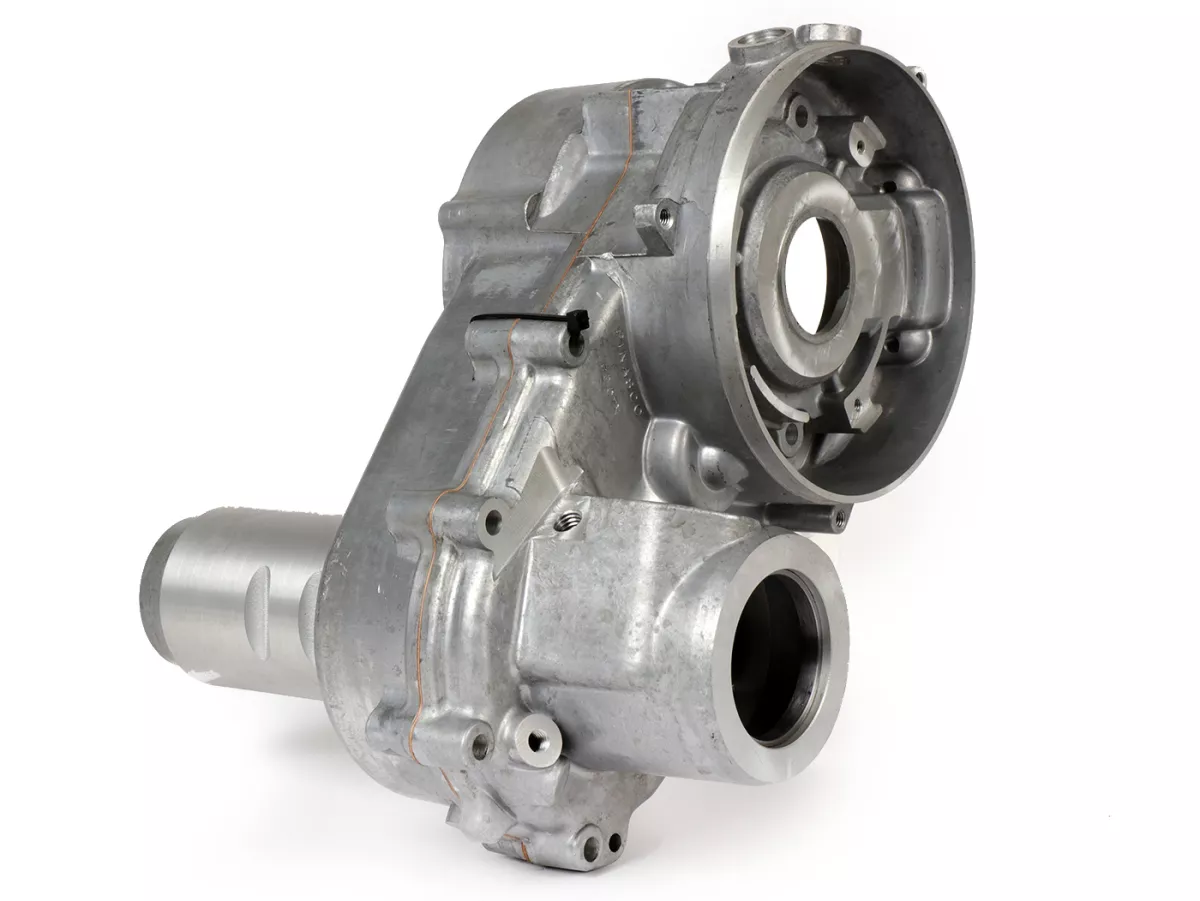

Engine case Super Slave incl. crankshaft Wideframe

Pinasco has resurrected here an original Wideframe housing

and equipped it with 4 stud bolts.

This gives you the advantage to mount all cylinders e.g. VNB (2 overflow ports) and PX125-150 (3 overflow ports) on this engine case.
The Membaneinlass can be closed by means of a plate or with the diaphragm and

diaphragm and intake manifold (AW-23mm) included in delivery.

as a housing sucked variant to be used.

Here the carburettor does not sit however at the original position and

the original choke- and throttle cable can not be used.
The original cylinder cover as well as exhaust systems of the Wideframe models

do not fit anymore.
Beside the original gearbox a 4 speed gearbox fits here

and of course the Pinasco Flytech ignition can be used.

SUPPLY

• 7mm wider crank cheeks for more torsional stability

• Crankshaft 57mm stroke

• diaphragm, -box, intake manifold

• all studs, sleeves, gaskets, closure plate

• discreet Pinasco logos to preserve the original look

• 4 studs cylinder mount (type PX125-150)

• Attachment parts or conversion parts see accessories

(TW27.10.21)
