Engine casing incl. crankshaft (stroke=60mm) -PINASCO Super Slave (reed intake)- 4 studs Vespa Wideframe, faro basso (lamp down), Vespa 1953-1959, VM, VN, ACMA, VB1T, VGL1T, VL1T, GS150 vendita online

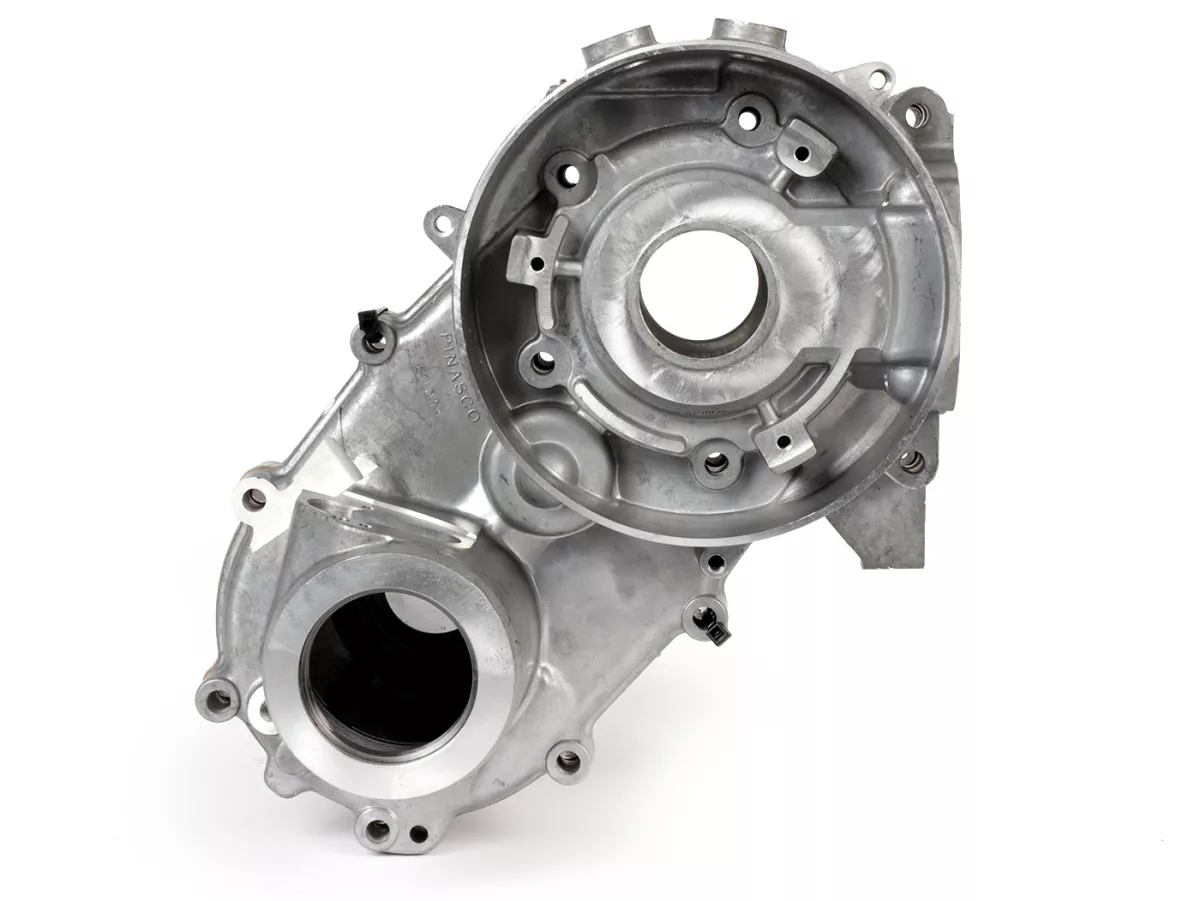

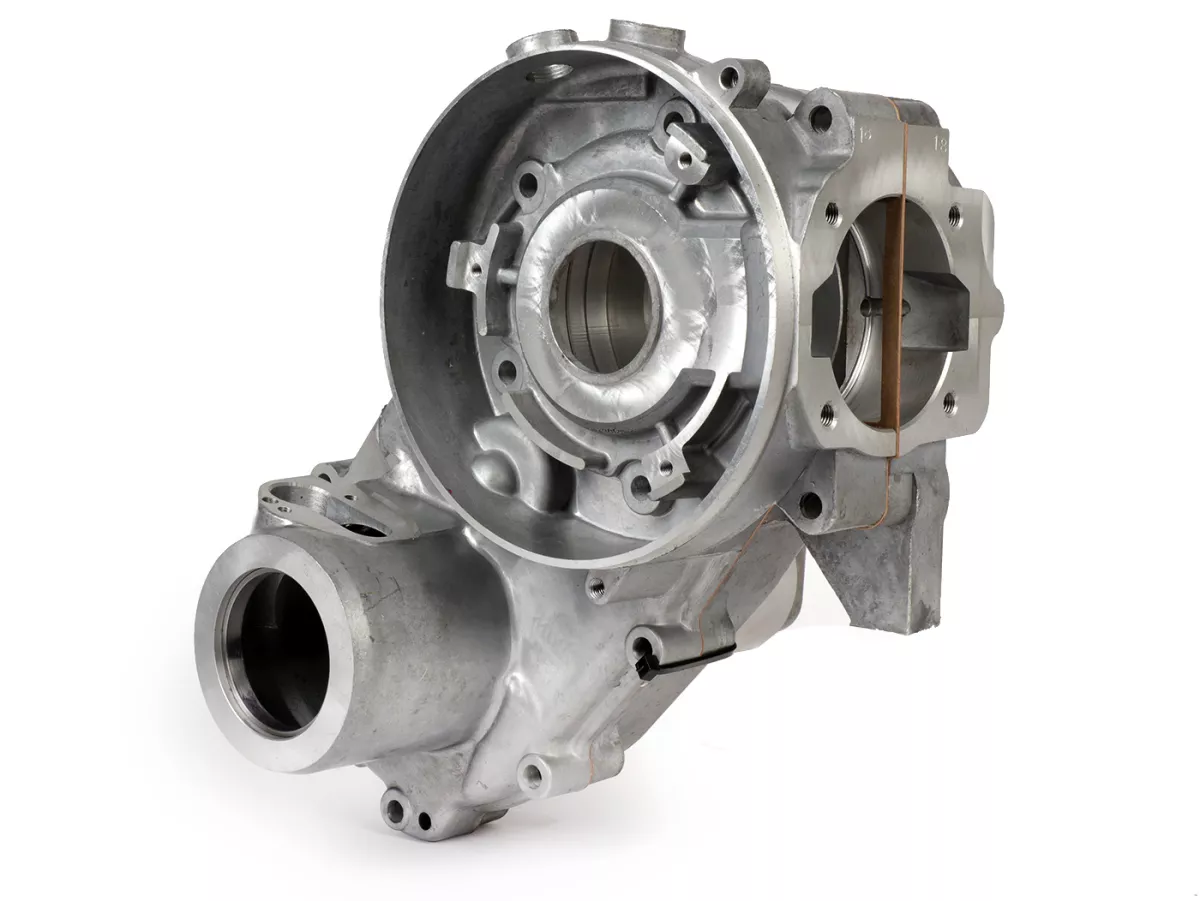

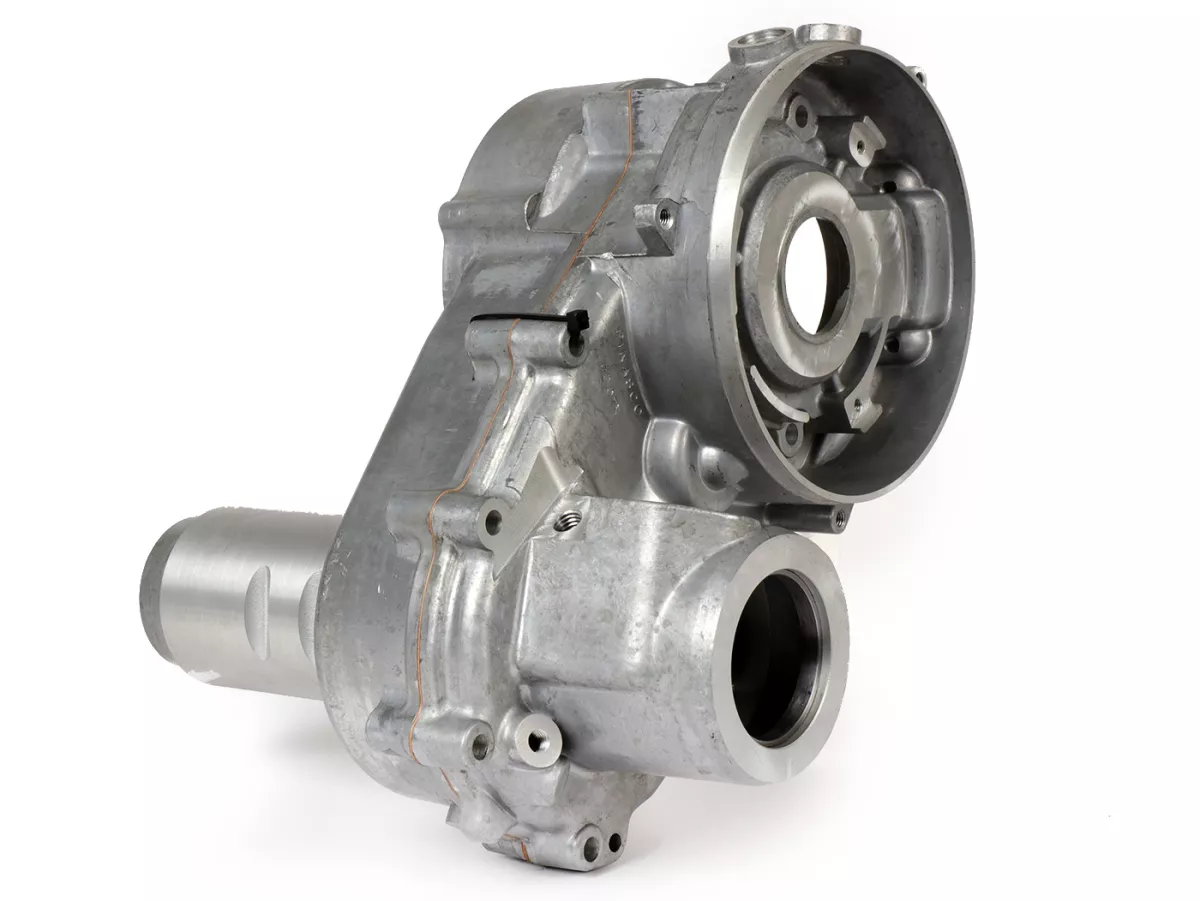

Engine case Super Slave incl. crankshaft Wideframe
Pinasco has resurrected an original Wideframe case
and equipped it with 4 studs.
This gives you the advantage to mount all cylinders e.g. VNB (2 overflow ports) and PX125-150 (3 overflow ports) on this engine case.
The Membaneinlass can be closed by means of a plate or with the
diaphragm and intake manifold (AW-23mm) contained in the scope of supply
as housing sucked variant be used

.
In this case the carburettor is not in the original position and
the original choke and throttle cables cannot be used
.
The original cylinder cover, as well as exhaust systems of the Wideframe models, do
not fit
now.
Beside the original gearbox a 4 speed gearbox fits
and of course the Pinasco Flytech ignition can be used
.

SUPPLY

• 7mm wider crank cheeks for more torsional stability

• Crankshaft 60mm stroke

• diaphragm, -box, intake manifold

• all studs, sleeves, gaskets, closure plate

• discreet Pinasco logos to preserve the original look

• 4 studs cylinder mount (type PX125-150)

• Attachment parts or conversion parts see accessories

(TW27.10.21)

AI-translation
