Engine repair kit -LAMBRETTA- Lambretta LI, LIS, SX, TV (series 2-3), DL, GP – oil seals MB Developments offerta

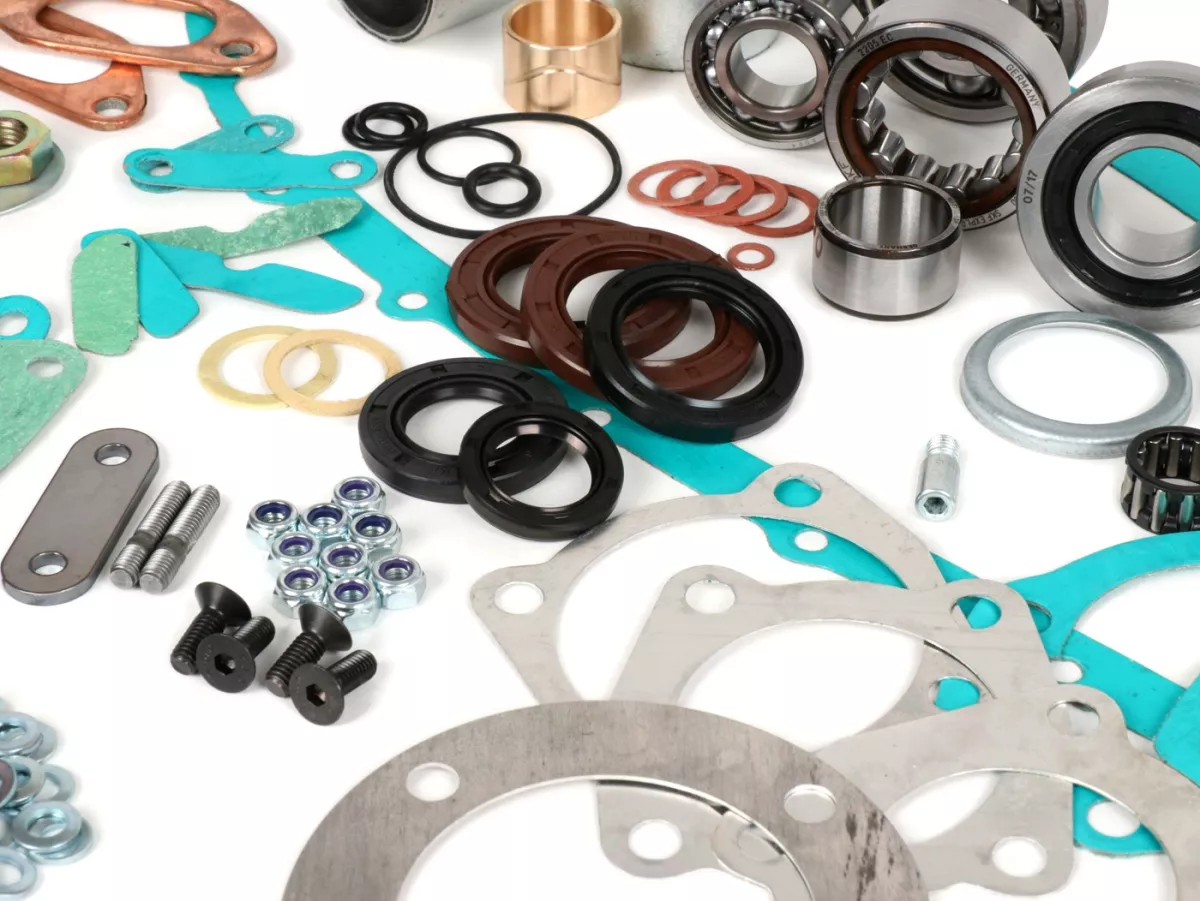

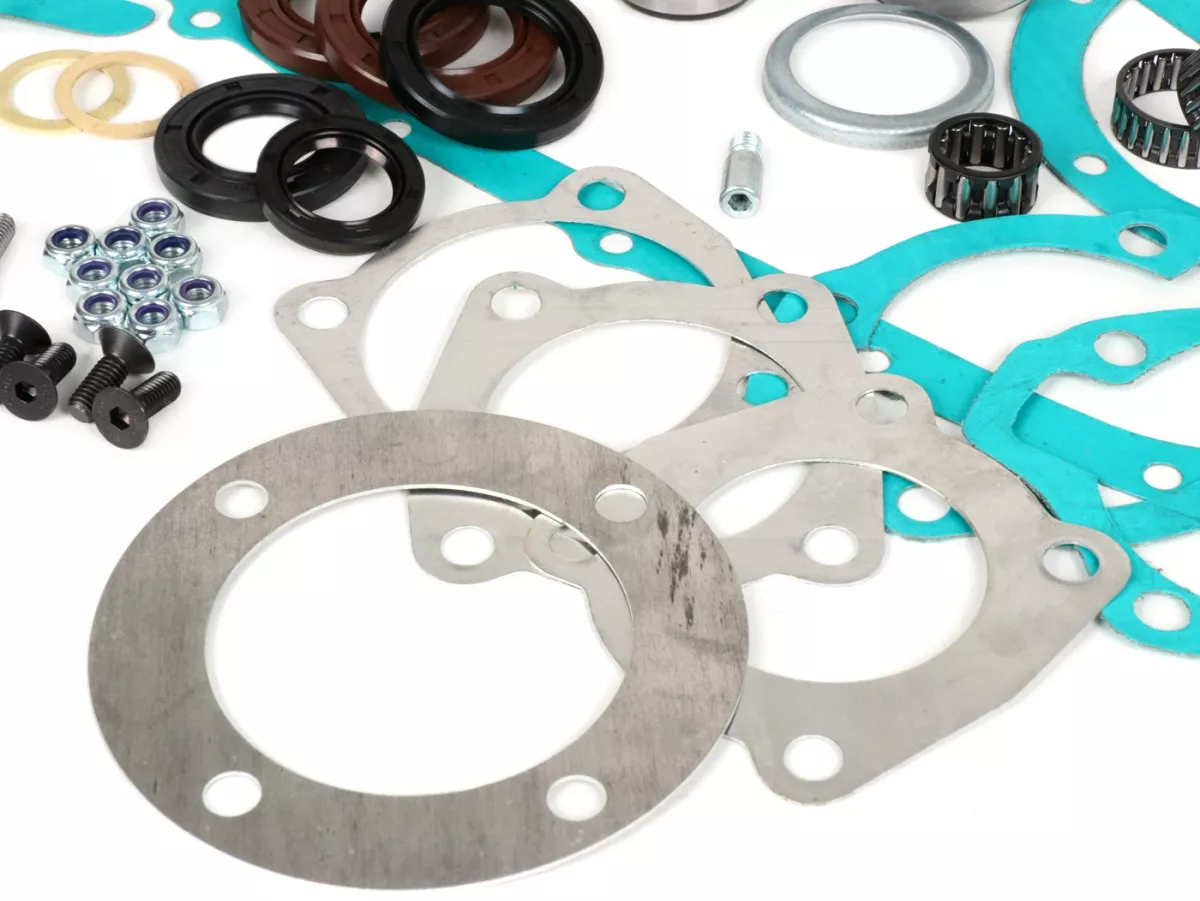

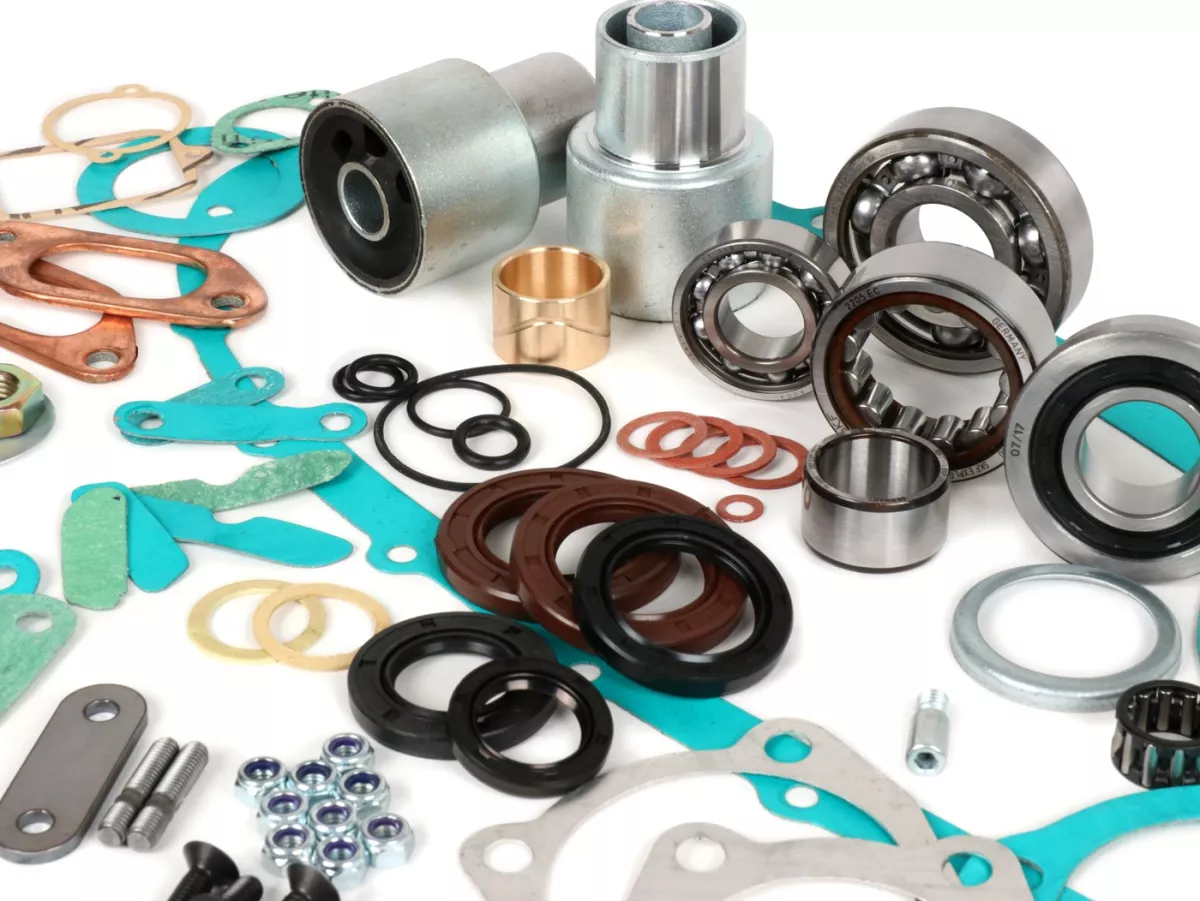

Lambretta engine revision set

We offer two revision sets for your Lambretta engine. In the simple set you will find all the parts you need to overhaul an engine that is in good condition anyway. Here you will find almost all engine mounts, gaskets, shaft seals, new silent blocks and other parts that are usually needed.

are included in the delivery:

1. complete engine mount kitdl/GP. It can also be used for the Li/SX models if the spacer ring is not installed in the maghousing. In this case the wider NU2205 bearing of the dl/GP will fit the earlier models.

• 6305 ball bearing drive side crankshaft – SKF or FAG

• NU2205 ball bearing alternator side – SKF or FAG

• ball bearing rear wheel – bgm PRO

• 6004 Ball bearing auxiliary shaft – SKF or FAG

• Coupling bushing dl/GP – bgm PRO

• needle bearing -K- (24x28x10 mm) Spider/pinion LI/SX/TV/GT (2 pieces) – SKF or FAG

• needle bearing -K- (16x22x12 mm) Auxiliary shaft/motor housing – SKF or FAG

• needle bearing -K- (20x24x10 mm) Main shaft/gear cover plate – SKF or FAG

2. complete motor seal kit– 29 parts. Fits 125, 150, 175 and 200 cc.

3. seeger ring set MB Developments. All used retaining rings except the one in the maghousing (Art. No. 8002140).

4. Complete O-ring set MB Developments. For main shaft, rear brake arm, shift and clutch shaft.

5. silent block set bgm PRO

6. pressure plate set for the chain tensioner.

7. Screw hexagon socket M6 x 16 mm (4 pcs.) for fixing the cover plate for the 6305 bearing on the drive side.

8. L-ring fan wheel housing

9. kick starter piston bolt MB Developments

10. Clutch nut M14 x 1.5

11. clutch nut lock washer

12. M6 washers – 100 pieces – in a set of 100 pieces cheaper

With the shaft seal set you can choose between MB Developments (inner crankshaft seals made of FPM), Jockeys Boxenstop (inner crankshaft seals made of FPM) and Casa Lambretta (all shaft seals made of FPM).

Some parts are not included in the kit as the choices are too wide. This concerns parts for the clutch revision, the front sprocket, the chain tensioner, the chain, the cover plate for the 6305 bearing, cylinder studs, kick starter shaft, the shift claw and the adjusters on the engine.
