Indicator buzzer -OEM QUALITY- Vespa PX / T5 125cc – 12V AC/DC- universal speciale

All-purpose electronic 12V indicator beeper with pleasant beep sound.

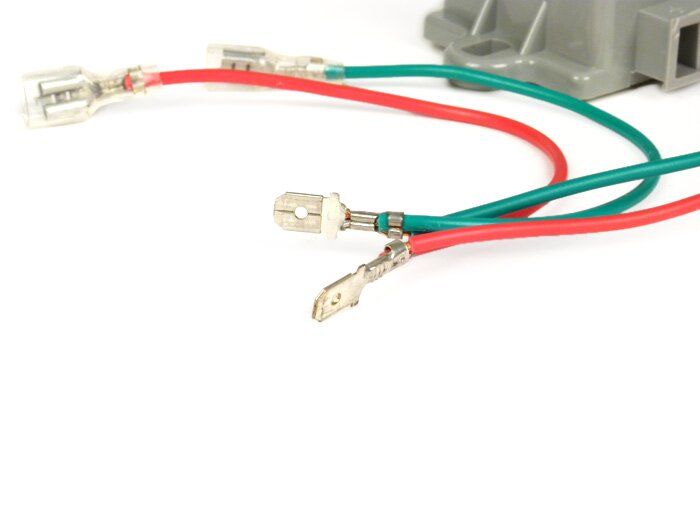

The beeper is connected in parallel to the flasher relay (cables are also connected to the current-carrying cables of the relay).
To do this, disconnect the cables at the relay, insert the male plugs of the beeper into these cable lugs of the cable branch to the relay. Slide the now still free female plugs of the beeper to the free slots on the relay. Make sure that the plugs are properly insulated. If necessary, work additionally with shrinkdown plastic tubing or insulating tape.

Vespa PX old (round sheet metal relay):

• Relay cable green =>green cable flasher beeper beeper
• Relay cable grey/white =>red cable flasher beeper

Vespa PX Lusso (square plastic relay):

• relay cable white =>green cable flasher beeper cable
• relay cable grey/green=>red cable flasher beeper cable

The beeper works with alternating current (AC) as well as with direct current (DC).
Alternatively, the beeper can also be connected directly to a flasher.
In this case, however, the acoustic signal only occurs on one side (on the side of the indicator connection).
