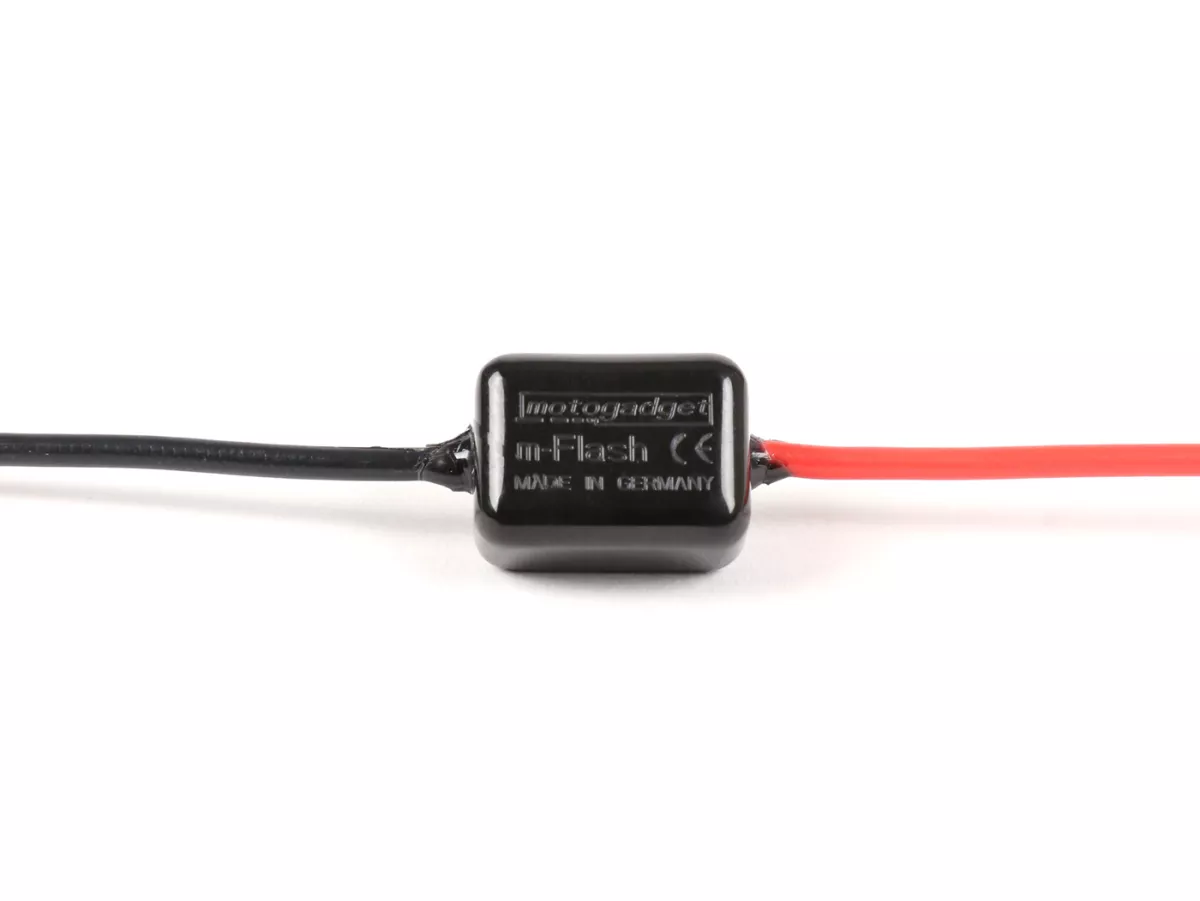

The m.flash is by far the smallest load independent flasher relay on the market. It couldn’t be smaller and simpler. The flasher unit m.flash replaces all conventional flasher relays.
Advantages
- Ultra small and light, practically just a piece of cable with a tiny device in candy size
- Ideal for custom bikes and conversions with limited space – bulky standard flasher relays or load resistors are a thing of the past
- Laying them down is a thing of the past.e.g. in the handlebar tube, frame tube or in the cable harness possible
- Virtually load-independent (min. 1 watt)
- Works completely with digital semiconductor technology Control via microprocessor. No mechanics, no coils, no contacts
- Always constant and correct flashing frequency therefore suitable for almost all LED-flashers, all micro-flashers, halogen flashers, 10 Watt flashers, 21 Watt flashers
- Functional e.g. with 4 flashing lights or 2 handlebar end flashers
- Instant, loss-free, brighter illumination of the flashing lights
- Super easy connection only via two cables – simply connect in series
- Absolutely waterproof and vibration-resistant because completely encapsulated
- Short circuit proof, automatic overload protection. Switches up to 100 Watt power.
- No heat development during operation
- Operating voltage from 5V to 18V
- Also suitable for 6 V flashers
- Quality ‘made in Germany’ – from motogadget
Notes
The m.flash replaces a conventional flasher relay. This flasher relay is usually located BEFORE the flasher switch when viewed in the circuit. The easiest way to install the m.flash is to find the original relay and simply replace it with the m.flash.
The m.flash can NOT replace the push button control when using push button fittings. See product m-Relay+ if you are looking for a flasher relay for push buttons.
On newer models from Harley-Davidson™ the flasher control is controlled by a special module (TSM/TSSM). The m.flash can unfortunately NOT replace or supplement these modules
Specifications and features
- Housing L x W x H 18 mm x 13 mm x 9.5 mm
- Length of connection cable approx. 2 x 50 mm
- weight approx. 4 g
