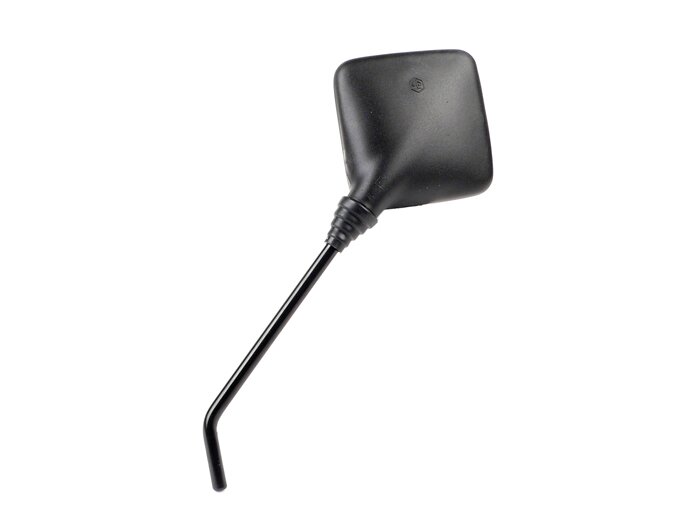

Original Piaggio mirror, as it was also used on the PX Lusso and PK XL1 models. The mirror has no thread for mounting. It is fastened directly in the steering head by vehicle-specific holders.

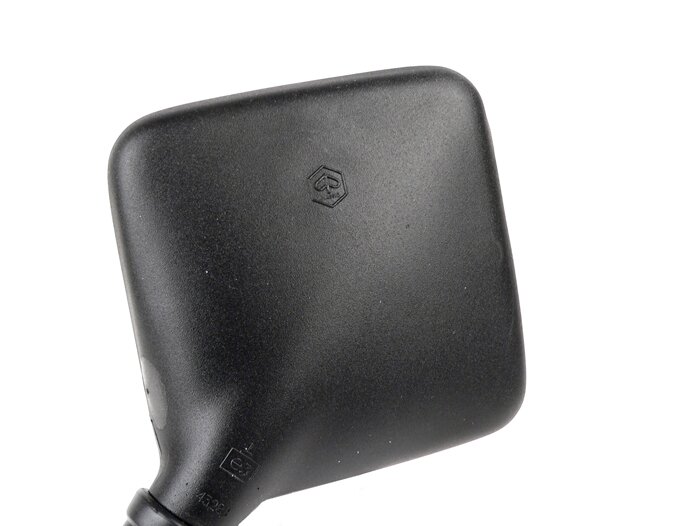

The mirror body is made of black through-dyed plastic, the mirror holder is made of painted steel. The mirror bears a test mark.
Does not have a ball joint and can therefore only be used on the left side of the vehicle.
NOTE:
According to StVZO §56, every motor vehicle in Germany, which also includes mopeds, requires at least one mirror mounted on the left side of the vehicle.
NUMBER OF mirrors depends on the first registration (EZ):
- EZ before 01.01.1990 1 mirror left
- EZ from 01.01.1990 up to 100 km/h 1 mirror left
- EZ from 01.01.1990 over 100 km/h 2 mirrors
SIZE
The size of the reflecting surface must be >/p>
- before EZ 17.06.2003 at least 60cm² (for round mirrors the diameter is greater than or equal to 88 mm)
- after EZ 17.6.2003 at least 69cm² (for round mirrors the diameter is greater than or equal to 94 mm)
betragen.
MIRRORS WITH TEST MARK:
Mirrors with test marks automatically fulfil all the above conditions.
- Mirrors with test marks must be fitted to vehicles which are approved according to EC law (from 01.10.2005).
- Vehicles with ABE approval (before 01.10.2005) must only use mirrors which meet the above criteria.
